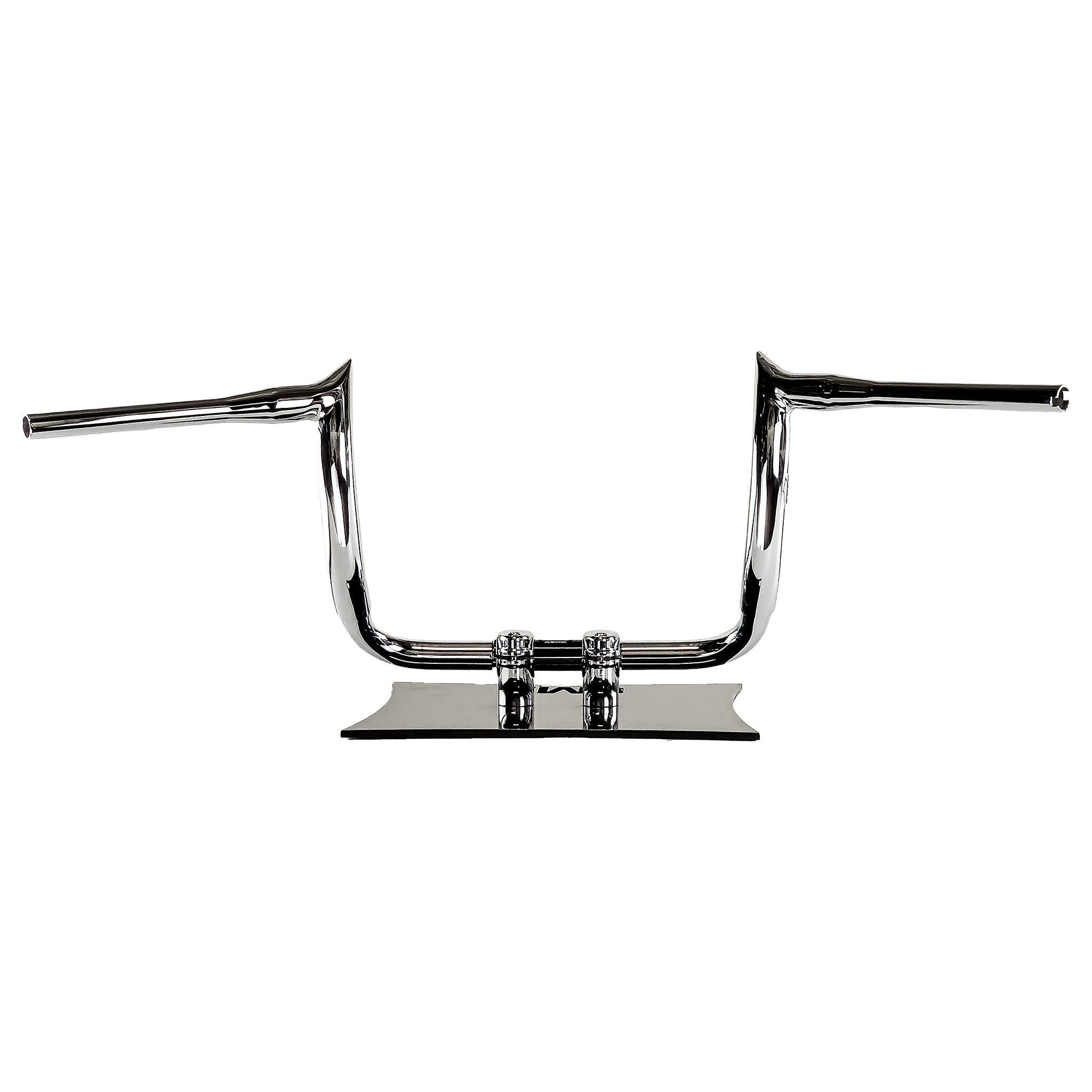

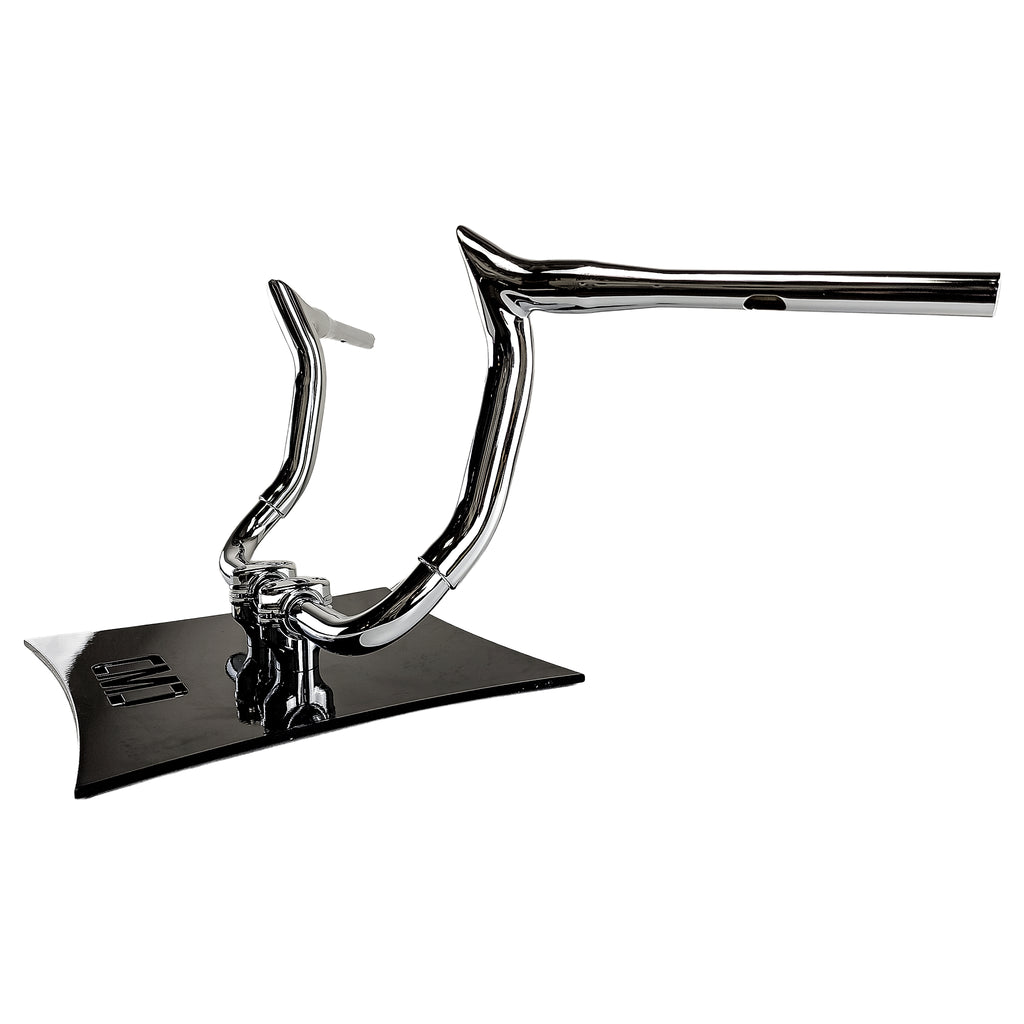

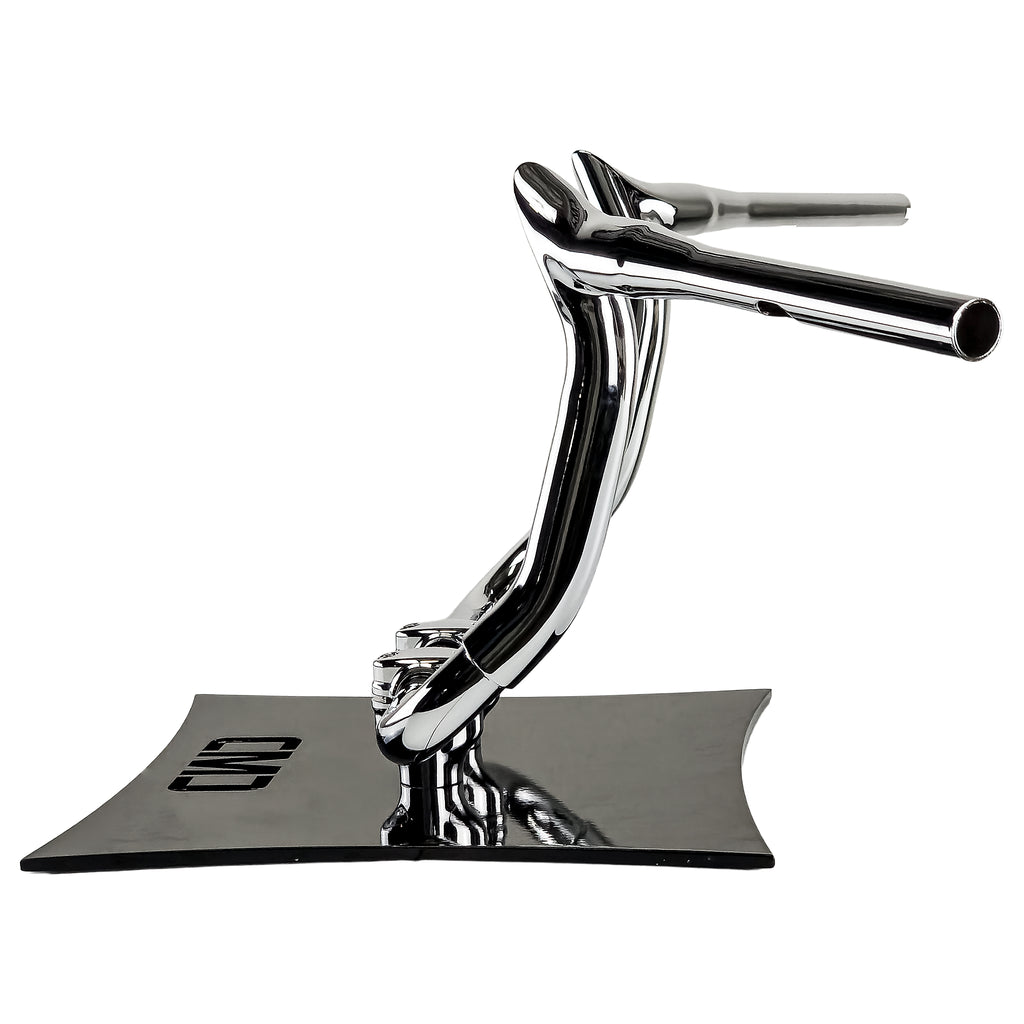

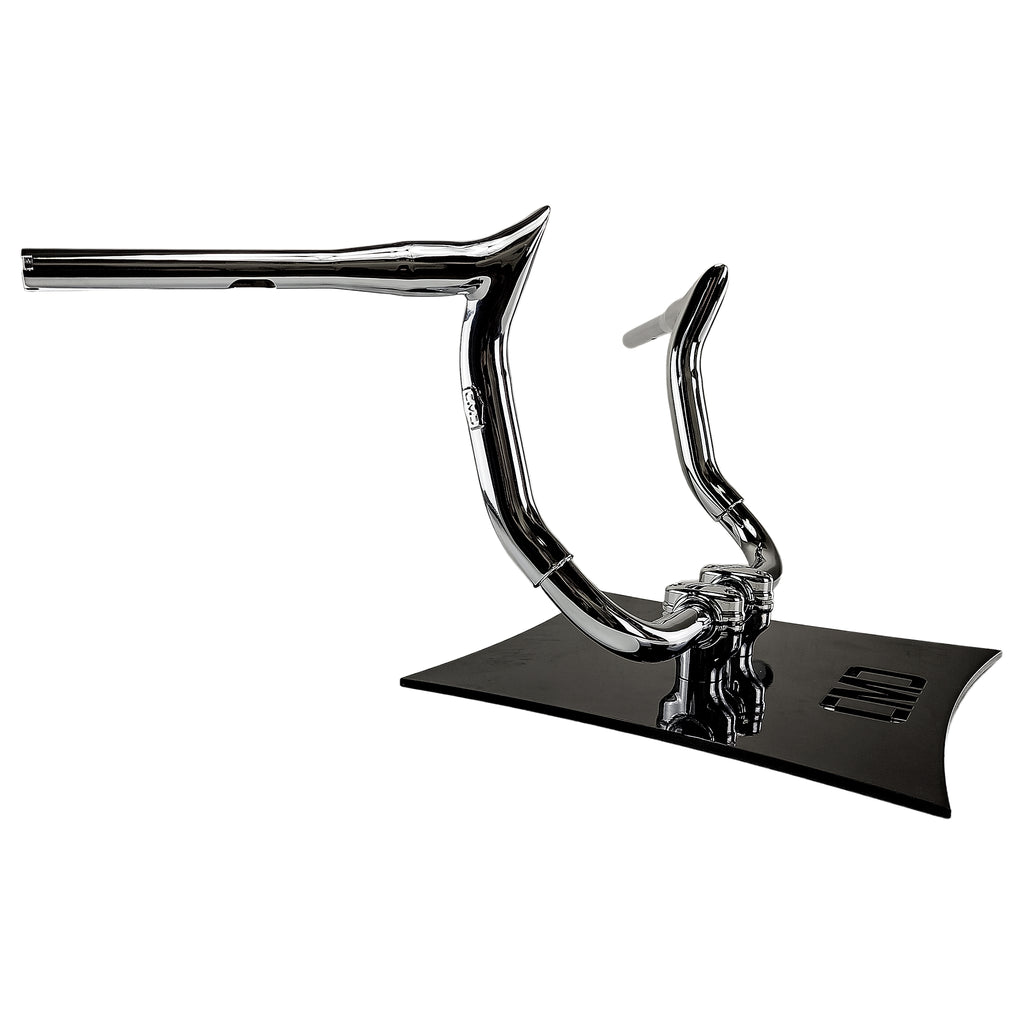

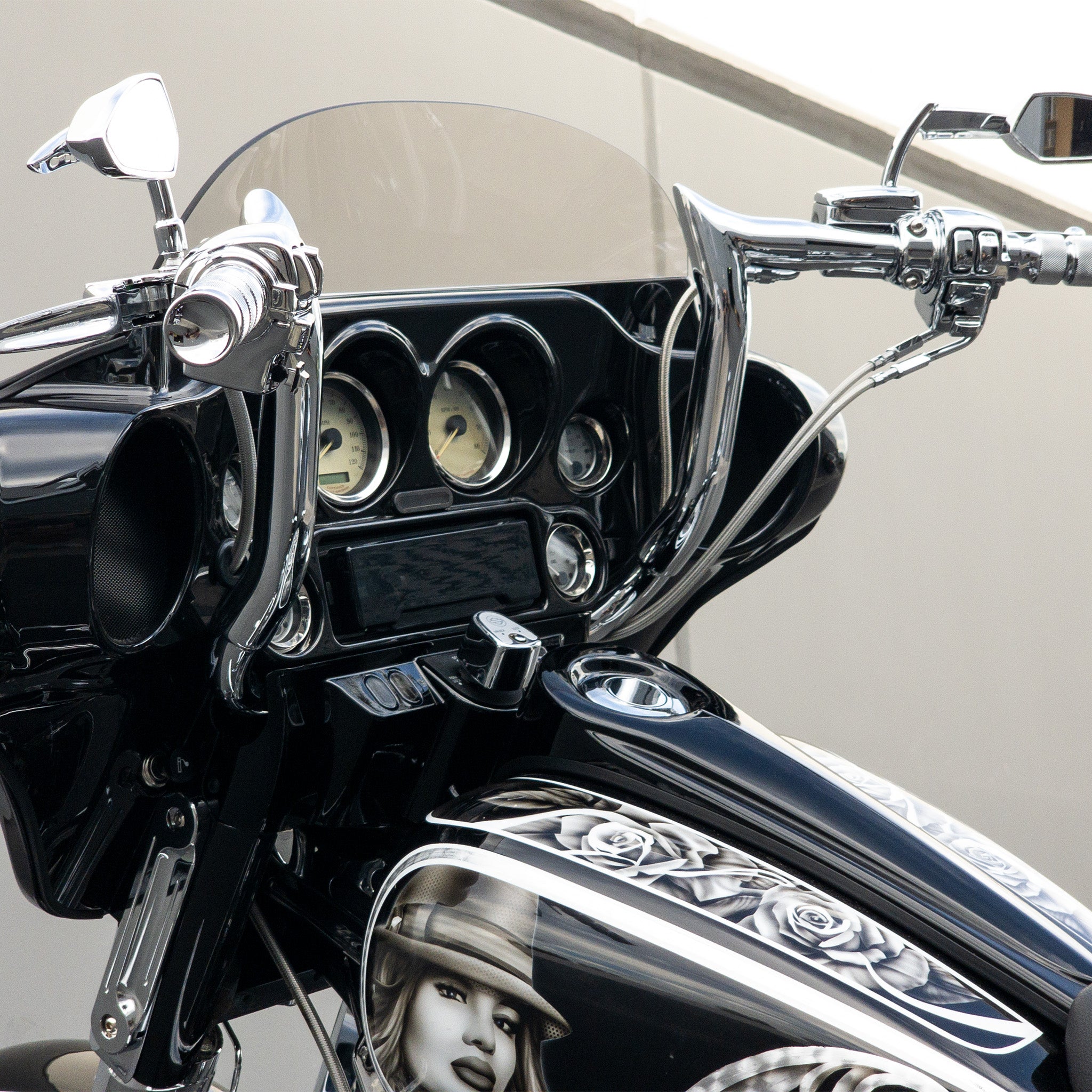

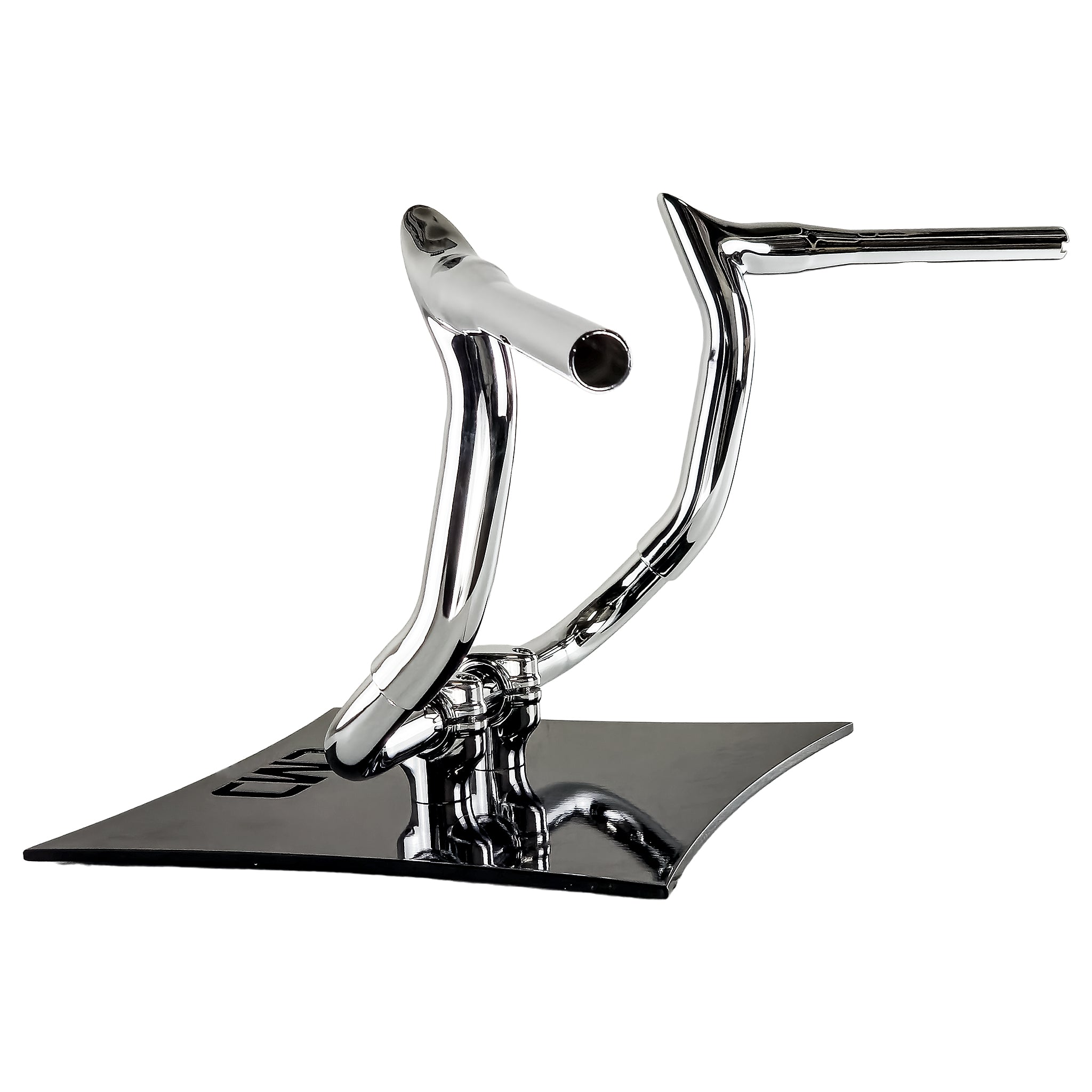

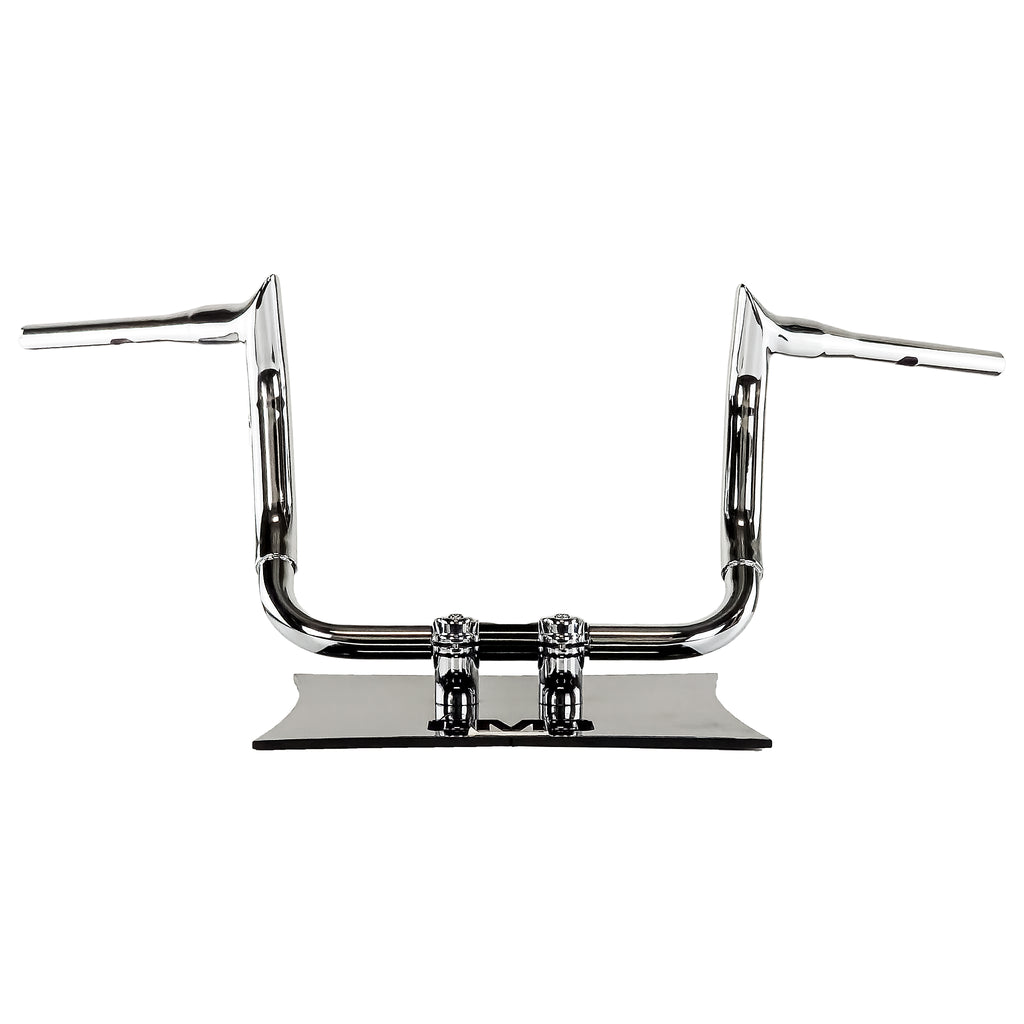

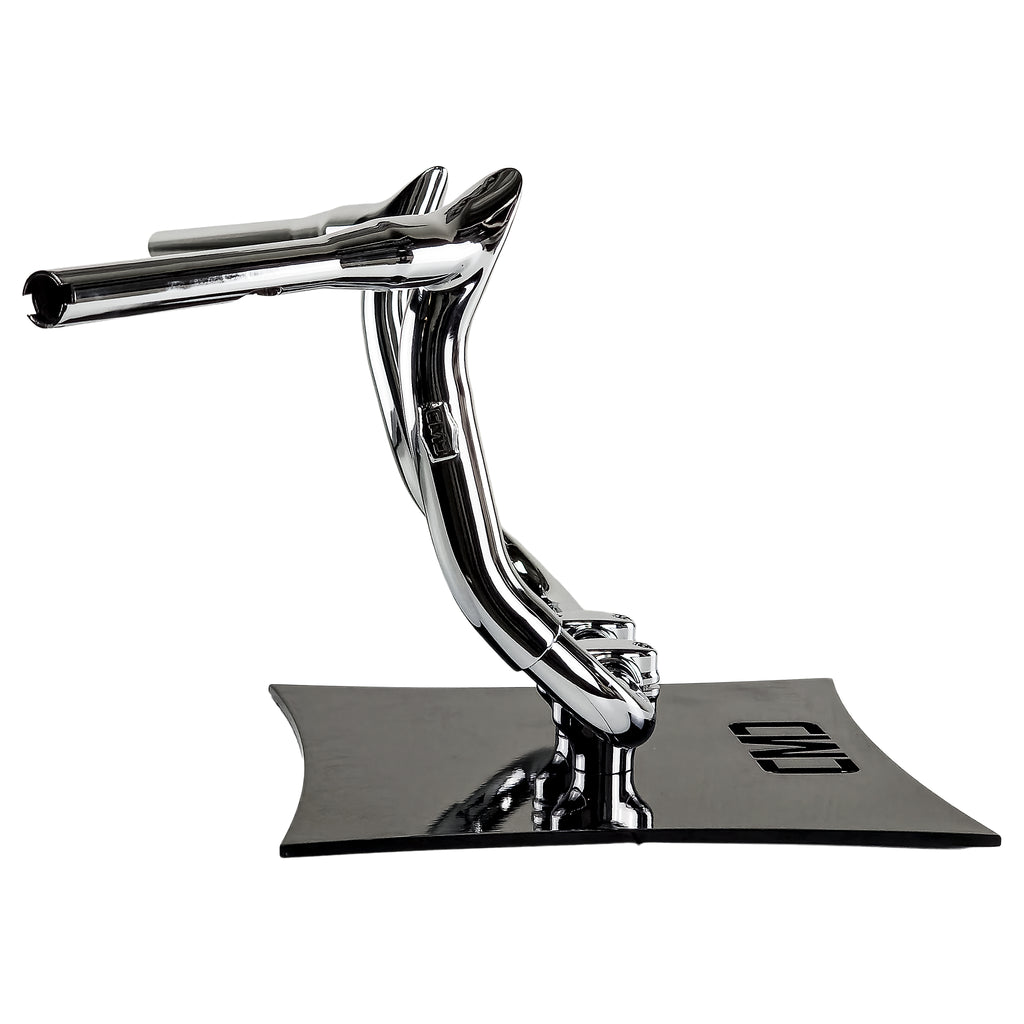

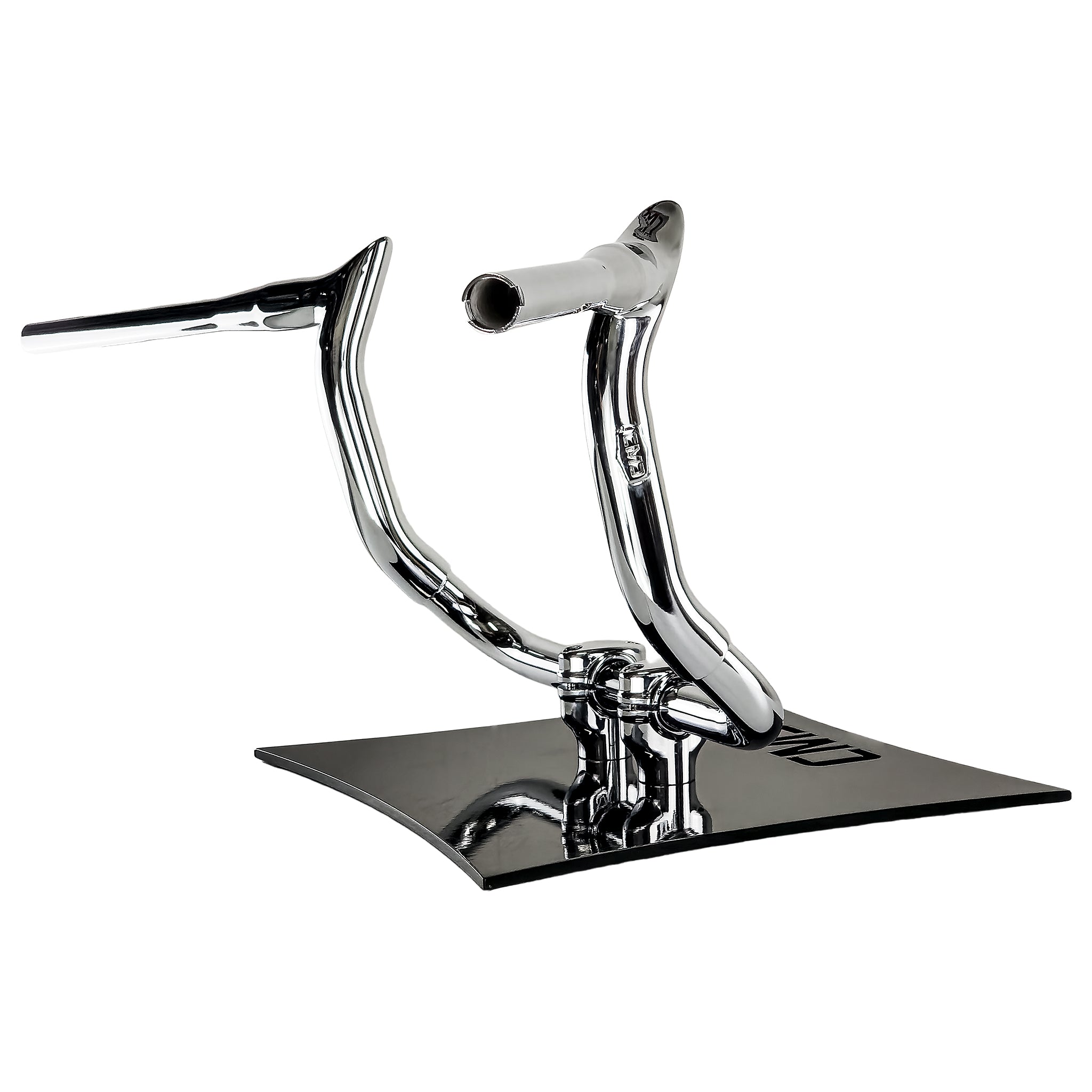

ELEV8 Handlebar 14" | 1997-2023 (Ultra / Electra / Street Glide) & 2009-2025 (Tri Glide) Show Chrome

CMC is bringing a fresh look to the Meat Hook Handlebar Scene with the Patent Pending "Forward Bend" ELEV8 Bar. 100% MADE IN AMERICA.

Specs:

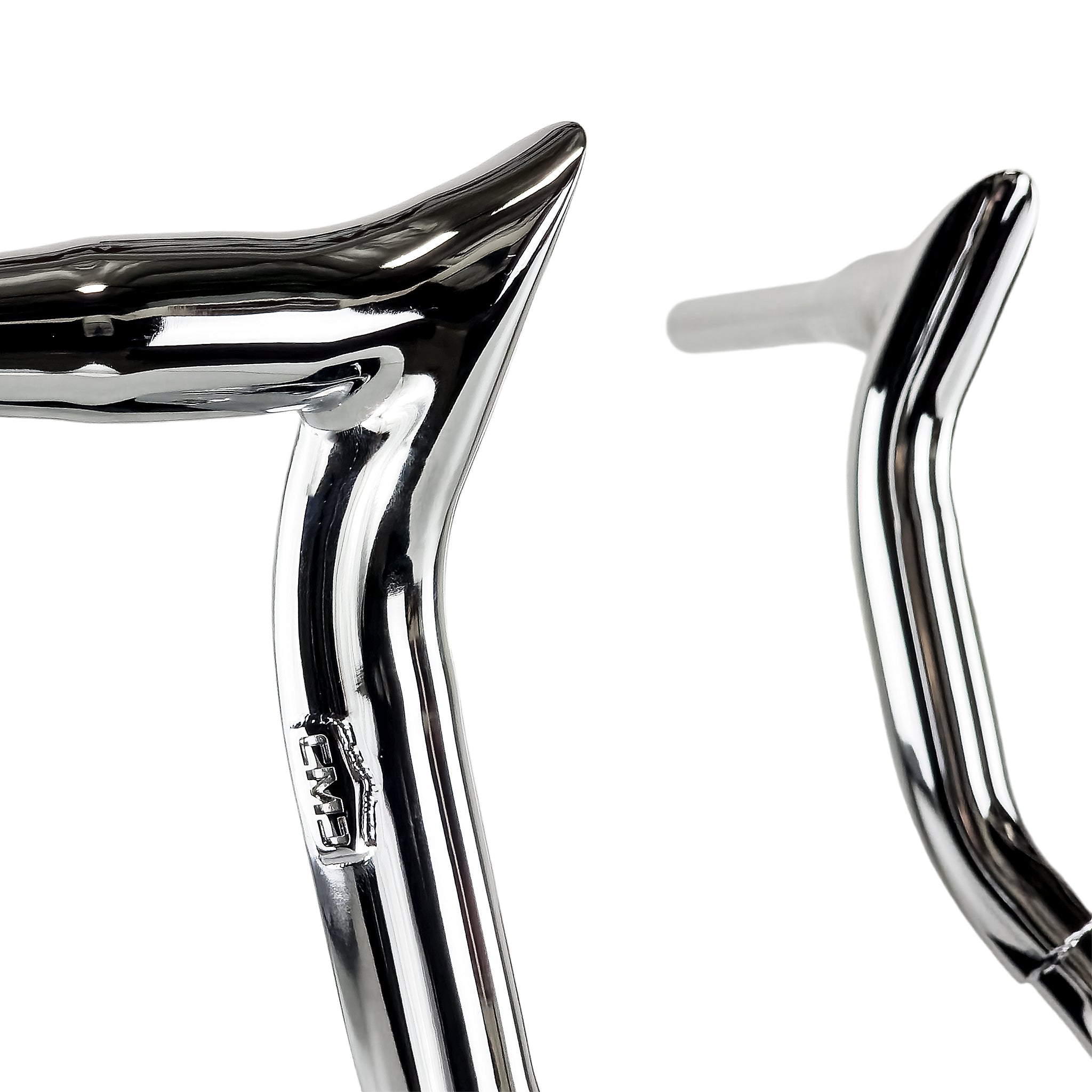

• Patented Forward Bend Meat Hook
• Chamfered Internal Welds for Smooth Wire Installation
• Swedged Grip 1 1/2" - 1" for Extra Strength
• Fusion / Tig Welded
• Accommodates Throttle by Wire (TBW) and Heated Grips
• Cables, Bushings, and Wire Extensions Sold Separately
• Compatible With Stock Risers

Cable/Internal Wiring Requirements - 1997-2013

• +6" Over Stock Handlebar Cables
• +10" Over Stock Internal Wiring Extensions

Cable/Internal Wiring Requirements - 2014-2020

• Use Stock Clutch And Brake Cable
• +10" Over Stock Internal Wiring Extensions

Cable/Internal Wiring Requirements - 2021 & UP

• Use Stock Brake Cable
• +6" Over Stock Upper Clutch Cable Extension
• +10" Over Stock Internal Wiring Extensions

Dimensions

• Rise (Bottom Point to Top Point): 14”
• Grip to Grip (Overall Width): 37”
• Meat Hook (Point to Point): 16 1/4”
• Bottom Width (Point to Point): 13”
• Down Tube (Outside to Outside): 18 1/4”
• Pullback: 8”
• Drop Down (Swoop): 2”
• Tube Diameter: 1.5”
• Clamping Area: 1”
